C352 (SPCC)

<Features>
  • Brake-stop type. With a sharp pull from the full-travel position, the inner member can be disconnected. (Stopper is not provided).
    [Caution]
    • Do not insert the disconnected inner member into another rail. It may lead to poor operation.
  • A lead-in guide is attached, so that the inner member can be easily reinserted.
  • Standard-use 35-mm rail compact overtravel type.
  • A Sky original product, developed by making the 3531 (thickness 19.2 mm) more than 6 mm slimmer.
  • A quiet movement member is provided to reduce the shock and noise of closing.
<Recommended screws>
  • M4 truss head screw or binding head screw
<Grease>
  • JX Nippon Oil and Energy EPNOC Grease AP(N) 2
<Surface Treatment>
  • Part numbers (1) (2) (3): Electrogalvanizing (trivalent bright chromate)

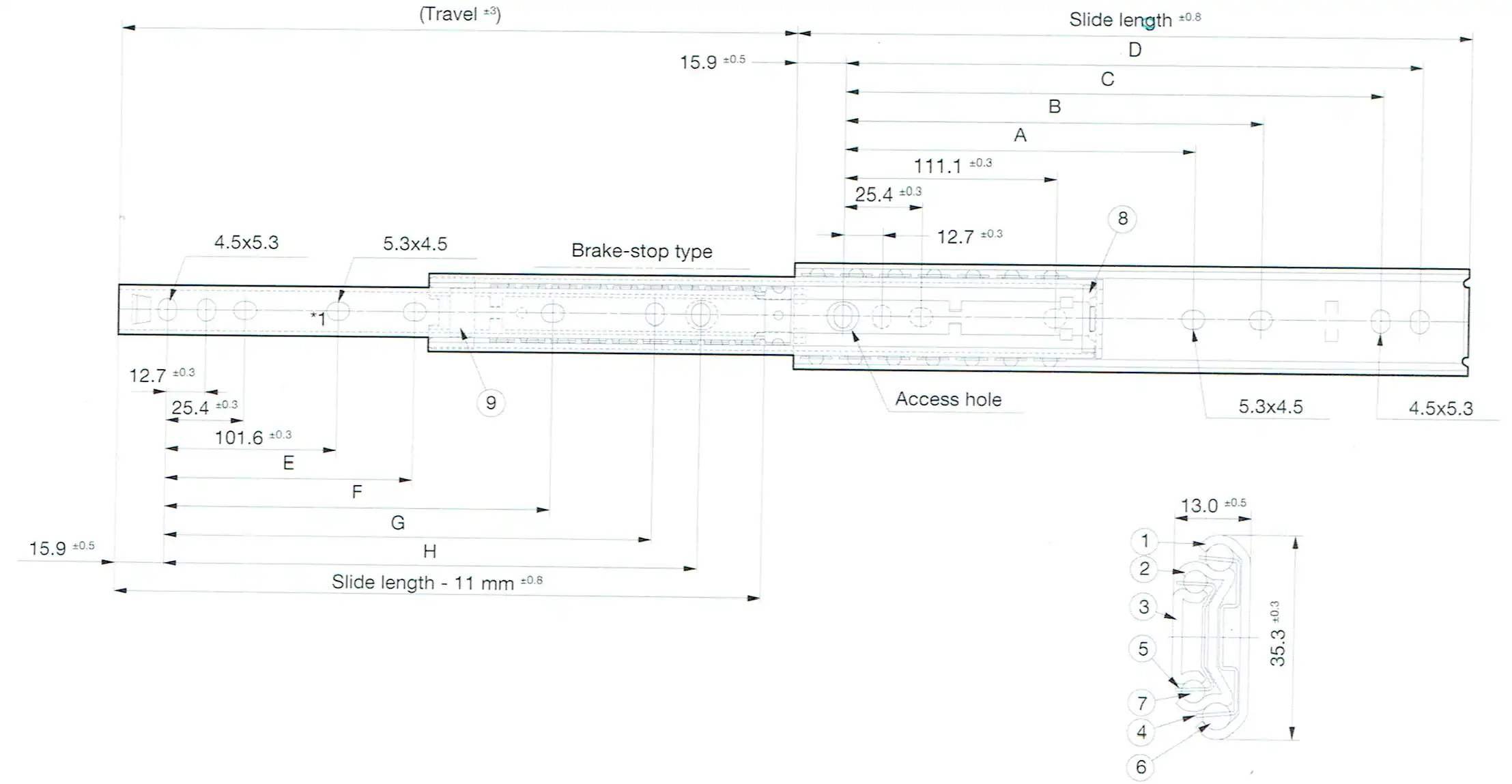

Specification
Custom Features
  • For special sizes, contact our sales staff.
  • Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
