← U2731 C350 →

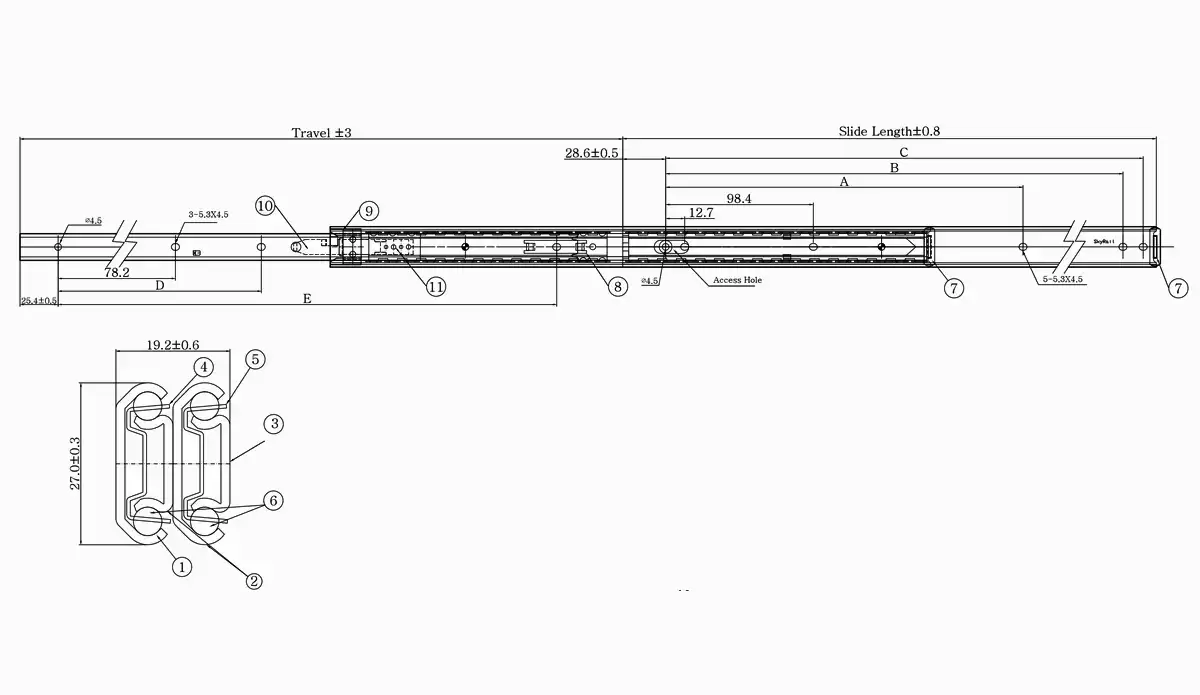

2736 (SPCC), U2736 (SUS)

<Features>

27-mm width slim slide rail.
The inner member can be disconnected through disconnect spring operation.
[Caution]
- Do not insert the disconnected inner member into another rail. It may lead to poor operation.
A lead-in guide is attached, so that the inner member can be easily reinserted.
The lock is automatically released at rail closing. (The lock is released without spring operation).

<Recommended screws>

M4 binding head screw

<Grease>

JX Nippon Oil and Energy EPNOC Grease AP(N) 2

<Surface Treatment>

Part numbers (1) (2) (3): Electrogalvanizing (trivalent bright chromate); however, U2736 is stainless steel and therefore unplated.

For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
