World smallest class slide rail, the result of press forming.
(as of our research in September 2014)
<Recommended screws>
M2.3 pan head screw or cross-recessed pan head screws for precision equipment.
[Caution]
Inner member mounting screw length must be within mounting material thickness + 1.8 mm. (Long screws will contact the ball retainer and impede rail operation or cause damage).
<Grease>
Nichimoly G-03031X

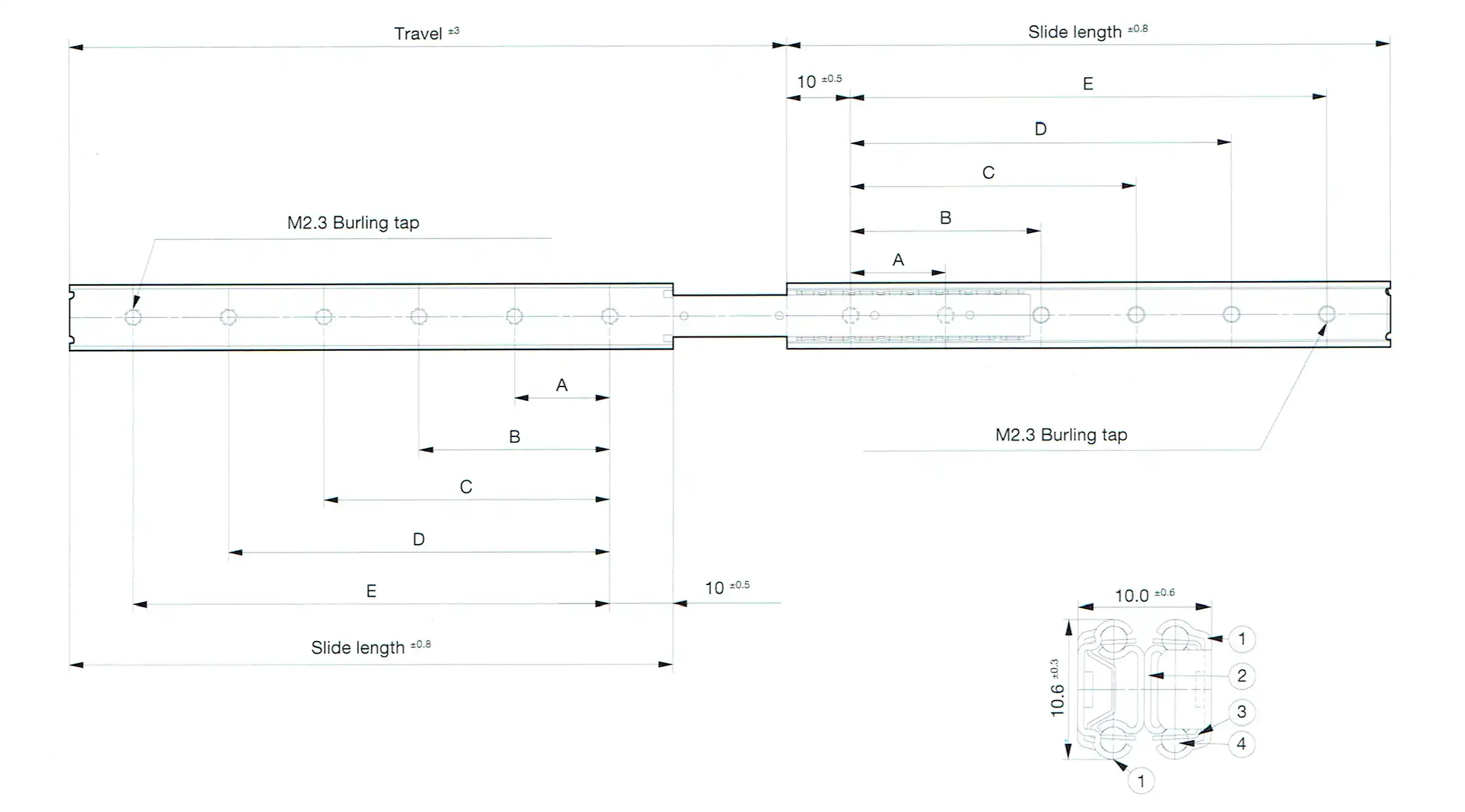

Specification
Custom Features
Part Number
Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
A
B
C
D
E
50
50
50.5
30
-
-
-
-
49
13.00
20
95
95
112.9
15
60
75
-
-
49
24.00
20
155
155
177.7
15
60
120
135
-
49
40.00
20
215
215
242.5
15
75
120
180
195
49
55.00
20
Number
Part Name
Material
Remark
1
Cabinet member
SUS304
t: 0.5
2
Drawer member
SUS304
t: 0.5
3
Center member
SUS304
t: 0.5
4
Ball retainer
SUS304
t: 0.3
5
Ball
SUJ-2
5/64"
For requests concerning special sizes or specification change etc., contact our sales staff.
For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
