Linear motion type: Inner member moves linearly within outer member.
<Recommended screws>
M2.6 Cross-recessed pan head screw for precision equipment.
[Caution]
Inner member mounting screw length must be within mounting material thickness + 2.0 mm. (Long screws will contact the ball retainer and impede rail operation or cause damage).
<Grease>
Nichimoly G-03031X

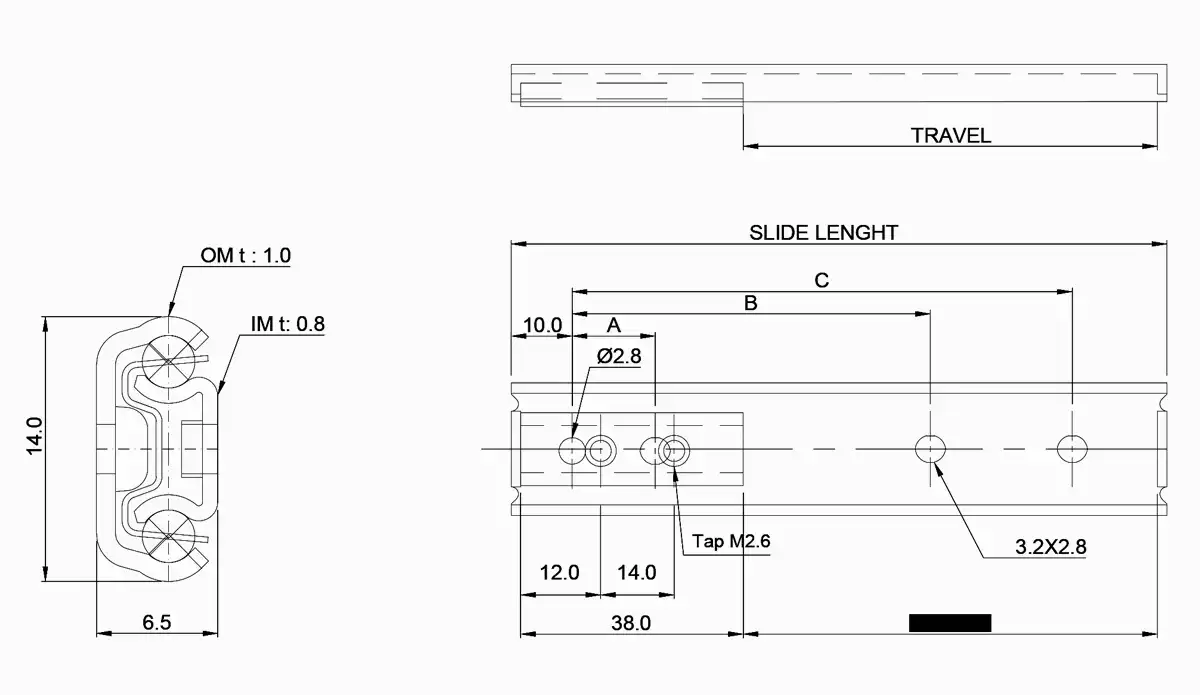

Specification
Custom Features
Part Number
Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
A
B
C
70A
70
30
-
-
50
-
20.00
480
100A
100
60
15
65
80
-
25.00
240
125A
125
85
15
90
105
-
30.00
240
150A
150
110
15
115
130
-
35.00
240
Number
Part Name
Material
Remark
1
Outer member
SUS304
t: 1.0
2
Inner member
SUS304
t: 0.8
3
Ball retainer
SUS304
t: 0.3
4
Ball
SWCH
7/64"
For requests concerning special sizes or specification change etc., contact our sales staff.
For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
