Series cumulative sales of over 2.7 million.
(as of our research in September 2024)
<Recommended screws>
M2.6 Cross-recessed pan head screw for precision equipment.
[Caution]
Inner member mounting screw length must be within mounting material thickness + 2.0 mm. (Long screws will contact the ball retainer and impede rail operation or cause damage).
Ordinary pan head screws may contact the ball retainer and impede rail operation or cause damage.
<Grease>
Nichimoly G-03031X
Specification
Custom Features
Part Number

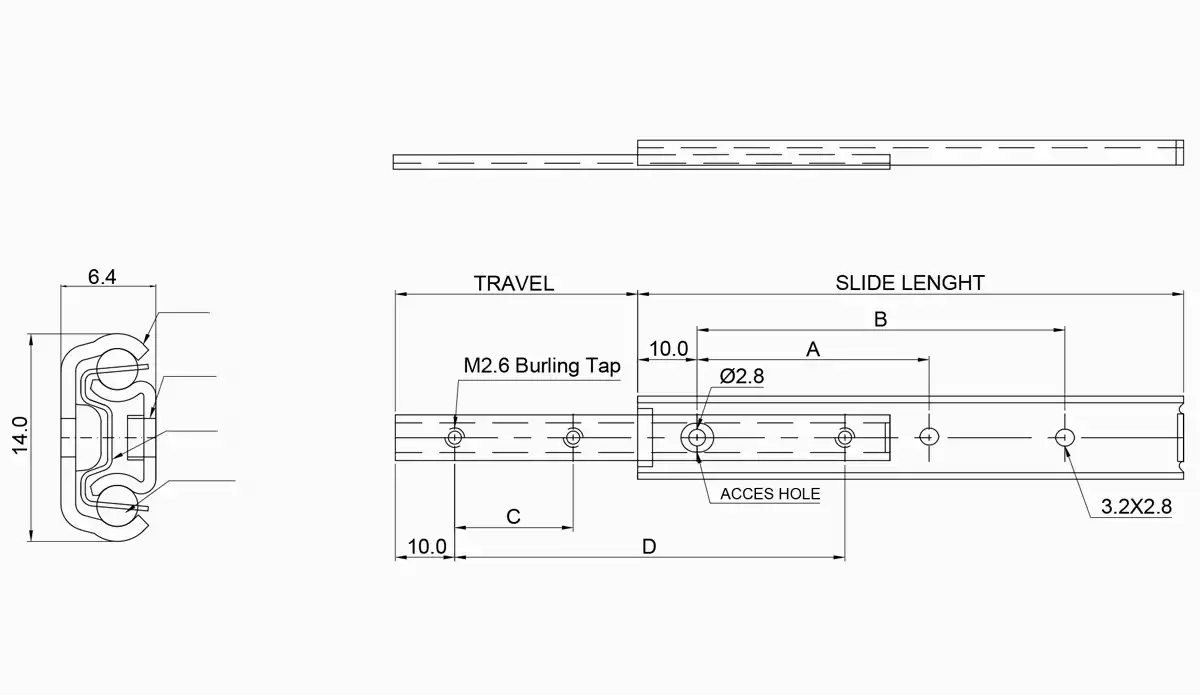

Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
A
B
C
D
70B
70
40
-
50
-
50
98
20.00
480
100B
100
70
40
70
40
80
98
30.00
240
125B
125
82
50
95
50
105
98
35.00
240
150B
150
95
60
120
65
130
98
40.00
240
Number
Part Name
Material
Remark
1
Outer member
SUS304
t: 1.0
2
Inner member
SUS304
t: 0.8
3
Ball retainer
SUS304
t: 0.3
4
Ball
SWCH
7/64"
For requests concerning special sizes or specification change etc., contact our sales staff.
For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
