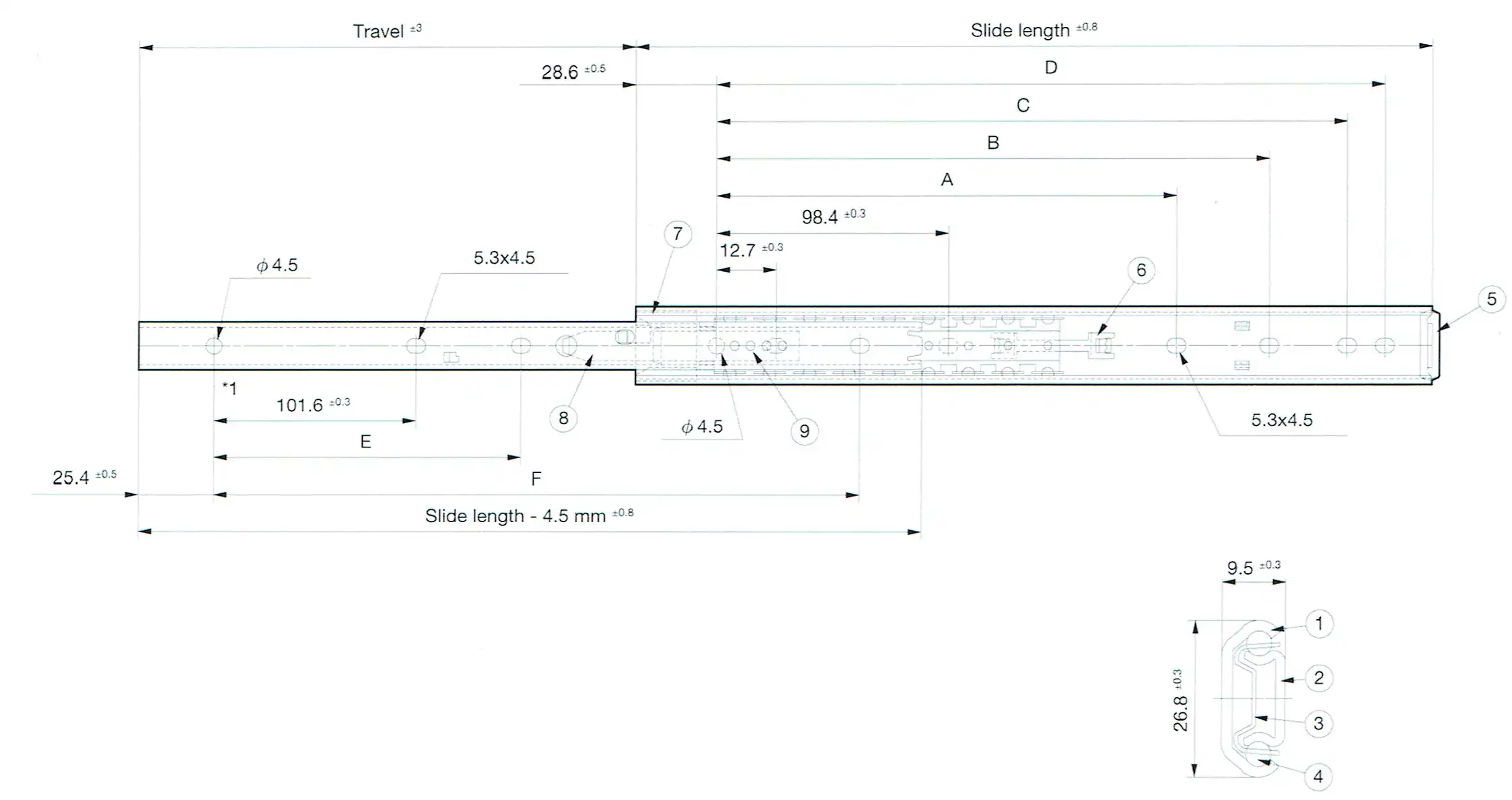

U2725 (SUS)

<Features>

Stopper takes effect when rail is drawn out. As well, the inner member can be disconnected through disconnect spring operation.
[Caution]
- Do not insert the disconnected inner member into another rail. It may lead to poor operation.
A lead-in guide is attached, so that the inner member can be easily reinserted.
The lock is automatically released at rail closing. (The lock is released without spring operation).
27-mm width slim slide rail.

<Recommended screws>

M4 binding head screw

<Grease>

JX Nippon Oil and Energy EPNOC Grease AP(N) 2

For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
