2000 Series compact overtravel type. Thickness is 10.2 mm.
Series cumulative sales of over 1.5 million.
(as of our research in August 2014)
<Recommended screws>
M2.6 truss head screw.
[Caution]
Inner member mounting screw length must be within mounting material thickness + 2.0 mm. (Long screws will contact the ball retainer and impede rail operation or cause damage.)
General pan head screws may contact the ball retainer and impede rail operation or cause damage.
<Grease>
Nichimoly G-03031X

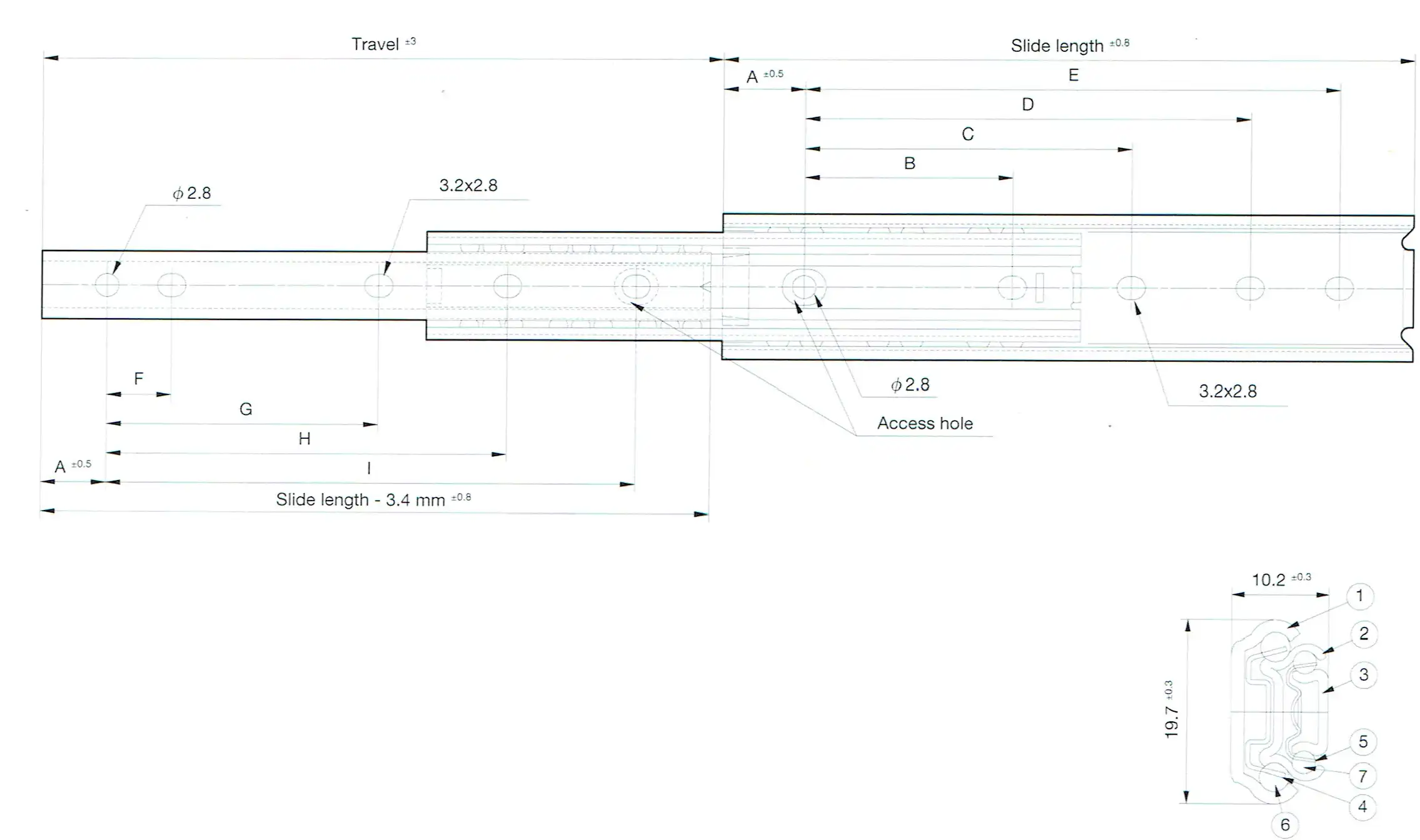

Specification
Custom Features
Part Number
Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
A
B
C
D
E
F
G
H
I
70
70
81
10
-
-
-
50
-
-
-
50
98
40.00
228
100
100
116
10
-
-
40
80
-
40
-
80
98
60.00
114
125
125
140
20
-
-
40
80
-
40
-
80
98
75.00
114
150
150
165
20
-
-
50
110
-
50
-
110
98
90.00
114
200
200
214
20
-
100
145
160
15
60
-
160
98
120.00
57
250
250
263
20
50
145
195
210
15
60
160
210
98
150.00
57
300
300
312
20
100
160
245
260
15
100
160
260
98
180.00
57
Number
Part Name
Material
Remark
1
Outer member
SUS304
t: 1.2
2
Center member
SUS304
t: 1.0
3
Inner member
SUS304
t: 1.0
4
Ball retainer
SUS304
t: 0.3
5
Ball retainer
SUS304
t: 0.3
6
Ball
SWCH
1/8"
7
Ball
SWCH
2.5 mm
For requests concerning special sizes or specification change etc., contact our sales staff.
For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
