We do not handle equivalent steel products, but we offer the 2731M with a quiet movement function and the 2731MC with a hold-detent mechanism; please refer to these.

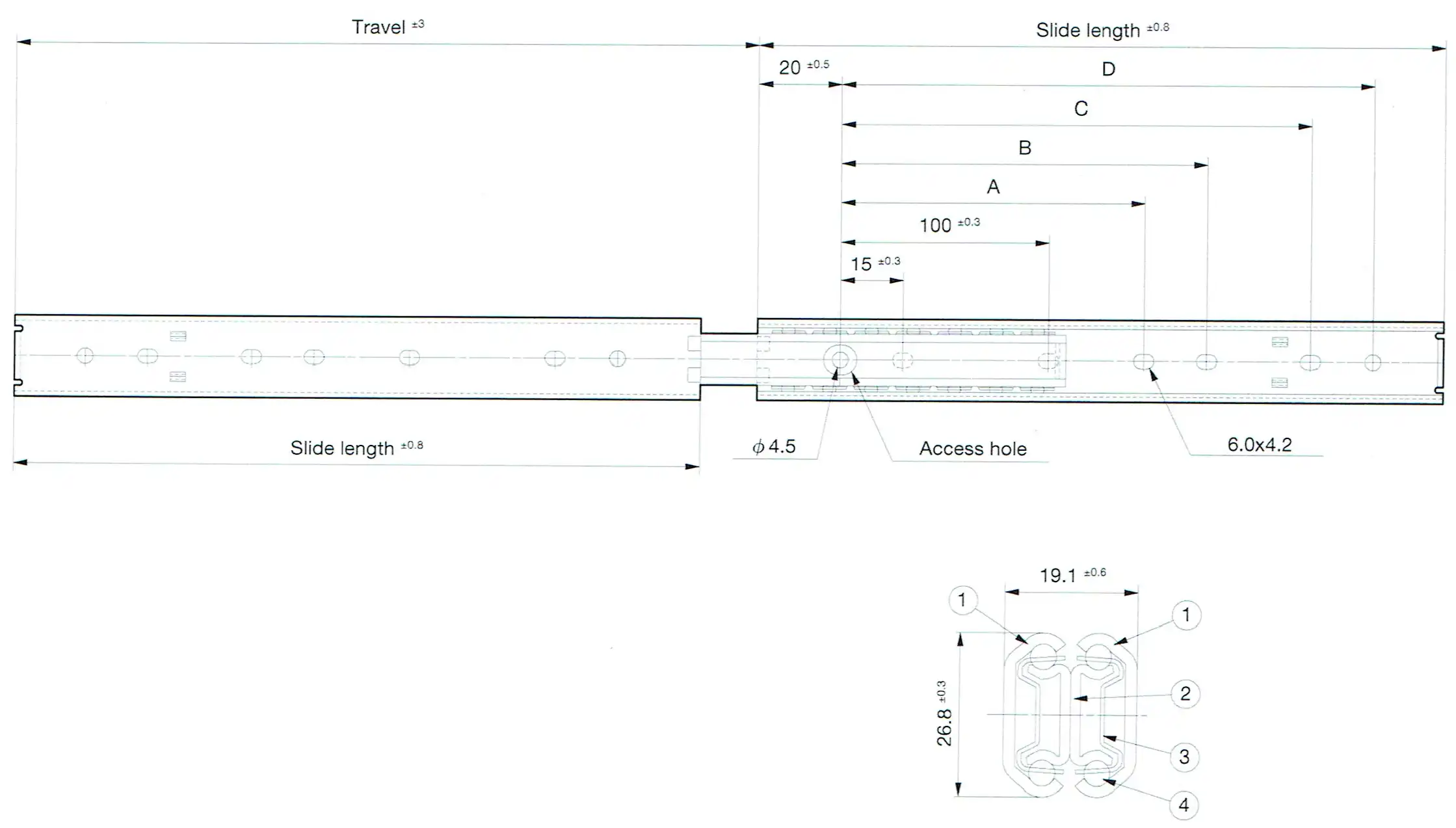

Specification
Custom Features
Part Number
Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
A
B
C
D
200
200
218
-
-
145
160
343
0.30
30
250
250
267
-
150
195
210
353
0.38
30
300
300
316
-
190
245
260
363
0.46
30
350
350
365
-
225
295
310
353
0.54
30
400
400
415
-
265
345
360
333
0.61
30
450
450
464
205
300
395
410
304
0.69
30
500
500
513
230
337
445
460
275
0.77
30
Number
Part Name
Material
Remark
1
Cabinet member
SUS304
t: 1.5
2
Drawer member
SUS304
t: 1.5
3
Center member
SUS304
t: 1.5
4
Ball retainer
SUS304
t: 0.5
5
Ball
SUS440C
3/16"
For requests concerning special sizes or specification change etc., contact our sales staff.
For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
