World smallest class slide rail, the result of press forming.
(as of our research in September 2024)

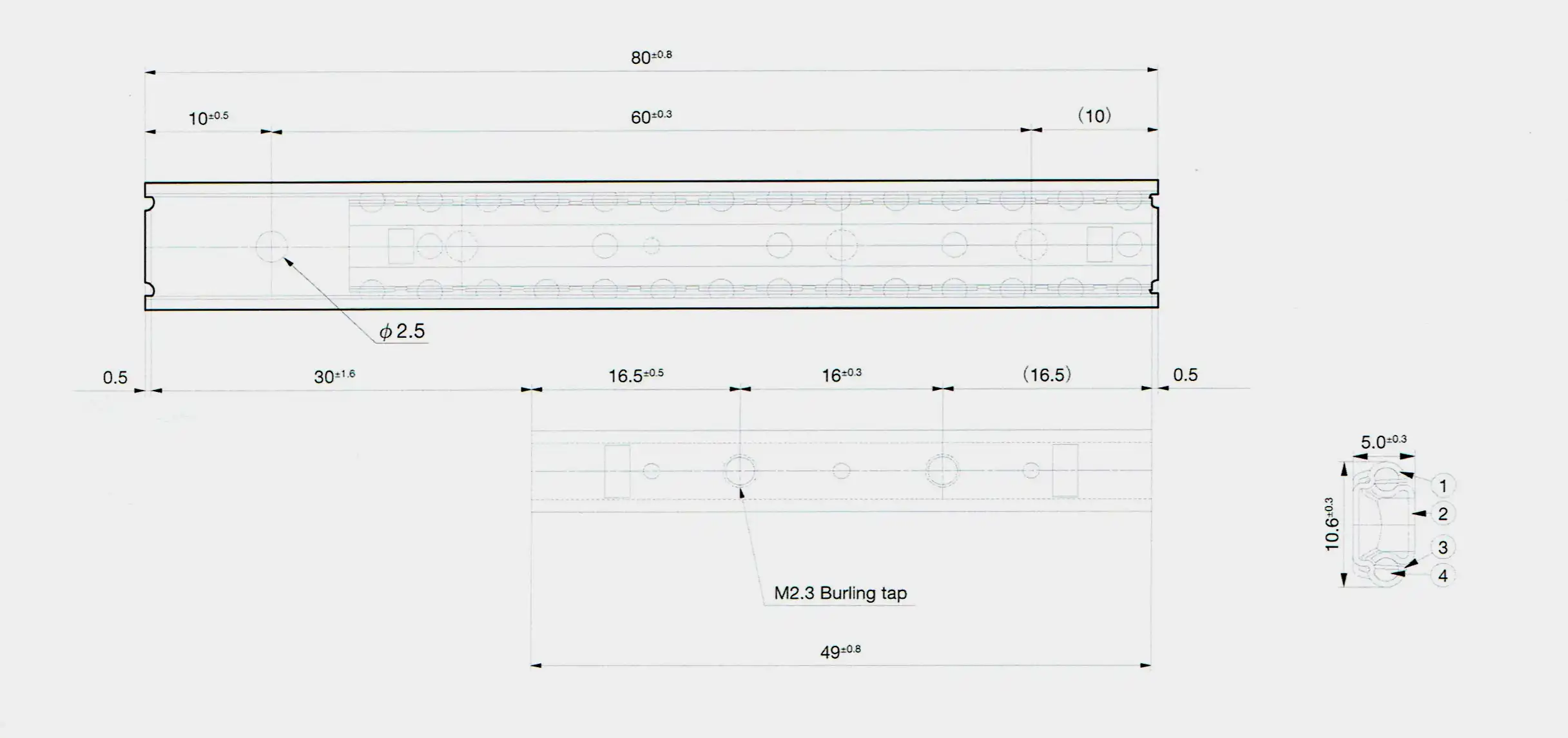

Linear motion type: Inner member moves linearly within outer member.
<Recommended screws>
M2.3 pan head screws or cross-recessed pan head screws for precision equipment.
[Caution]
Inner member mounting screw length must be within mounting material thickness + 1.8 mm. (Long screws will contact the ball retainer and impede rail operation or cause damage).
<Grease>
Nichimoly G-03031X
Specification
Custom Features
Part Number
Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
A
B
C
D
80
80
30
15
45
60
-
-
9.00
40
Number
Part Name
Material
Remark
1
Outer member
SUS304
t: 0.5
2
Inner member
SUS304
t: 0.5
3
Ball retainer
SUS304
t: 0.3
4
Ball
SUJ-2
5/64"
For requests concerning special sizes or specification change etc., contact our sales staff.
For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
