Linear motion type: Inner member moves linearly within outer member.
Standard length of plate and inner member is three inches (#3), [Special order] products include 4-inch (#4) and 5-inch (#5) lengths, for 3511 (SPCC) only.
<Recommended screws>
M4 truss head screw or binding head screw
<Grease>
JX Nippon Oil and Energy EPNOC Grease AP(N) 2
<Surface Treatment>
Part numbers (1) (2) (5): Electrogalvanizing (trivalent bright chromate); however, U11 is stainless steel and therefore unplated.
Specification
Custom Features

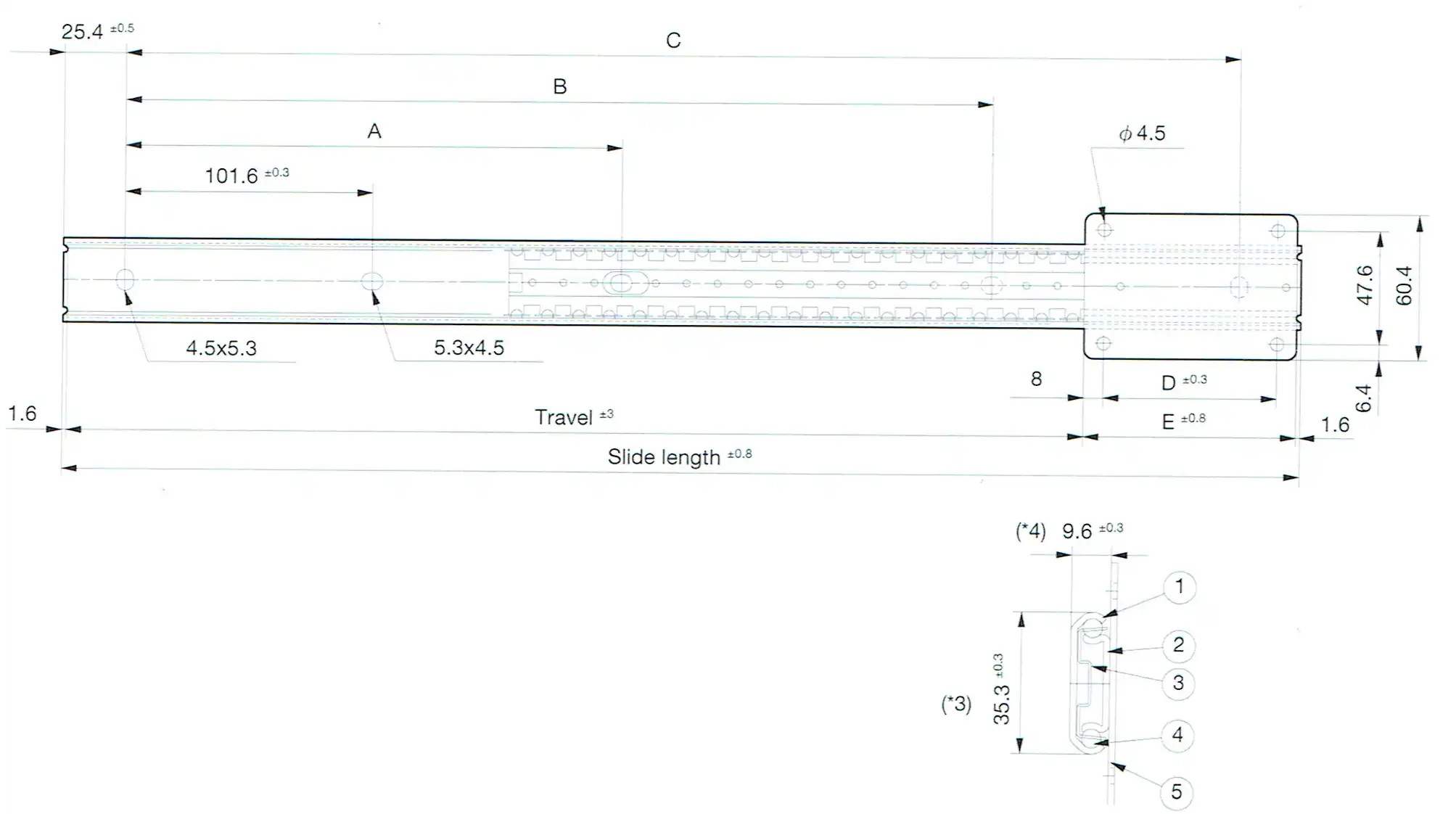

Plate No.
#3 (Standard)
#4 (Special Order)
#5 (Special Order)
E
76.2
101.6
127.0
D
60.2
85.6
111.0
Part Number
Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
1
2
3
A
B
C
12
304.8
225.0
200.0
175.0
-
152.4
254
-
0.30
25
14
355.6
276.0
251.0
225.0
-
203.2
304.8
-
0.34
25
16
406.4
327.0
302.0
276.0
-
254
355.6
-
0.37
25
18
457.2
378.0
352.0
327.0
203.2
304.8
406.4
-
0.40
25
20
508
429.0
403.0
378.0
228.6
355.6
457.2
-
0.44
25
22
558.8
479.0
454.0
429.0
254
406.4
508
-
0.48
25
24
609.6
530.0
505.0
479.0
279.4
457.2
558.8
-
0.51
25
26
660.4
581.0
556.0
530.0
304.8
508
609.6
-
0.54
25
28
711.2
632.0
606.0
581.0
330.2
558.8
660.4
-
0.58
25
Number
Part Name
Material
Remark
1
Outer member
SPCC
t: 1.6
2
Inner member
SPCC
t: 1.6
3
Ball retainer
SECC
t: 0.6
4
Ball
SWCH
3/16"
5
Mounting plate
SPCC
t: 1.6
For requests concerning special sizes or specification change etc., contact our sales staff.
For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
