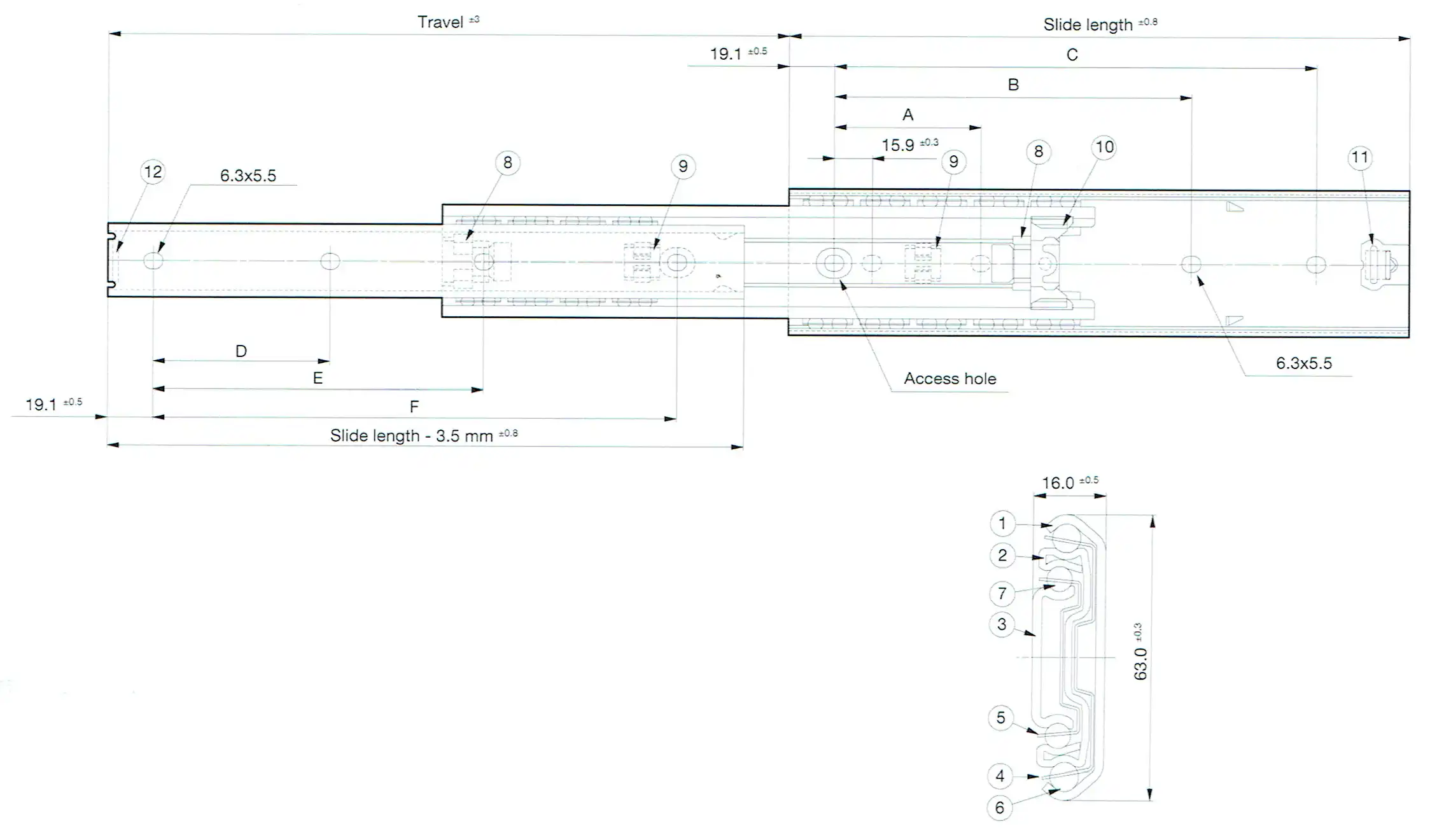

C630 (SPCC)

<Features>

63-mm width heavy-duty overtravel type rail.
Includes a simple catch mechanism at closing.
Includes a sequential mechanism (a mechanism which extends the rail in order) at draw -out, reinforcing the rail load capacity.

<Recommended screws>

M5 truss head screw or binding head screw

<Grease>

JX Nippon Oil and Energy EPNOC Grease AP(N) 2

<Surface Treatment>

Part numbers (1) (2) (3): Electrogalvanizing (trivalent bright chromate)

For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
