The 2000 Series features 20-mm width compact slide rails. Smallest cross section among SPCC rails.
Linear motion type: Inner member moves linearly within outer member.
<Recommended screws>
M3 truss head screw or binding head screw.
[Caution]
Inner member mounting screw length must be within mounting material thickness + 3.0 mm. (Long screws will contact the ball retainer and impede rail operation or cause damage.)
<Grease>
JX Nippon Oil and Energy EPNOC Grease AP(N) 2
<Surface Treatment>
Part numbers (1) (2): Electrogalvanizing (trivalent bright chromate)

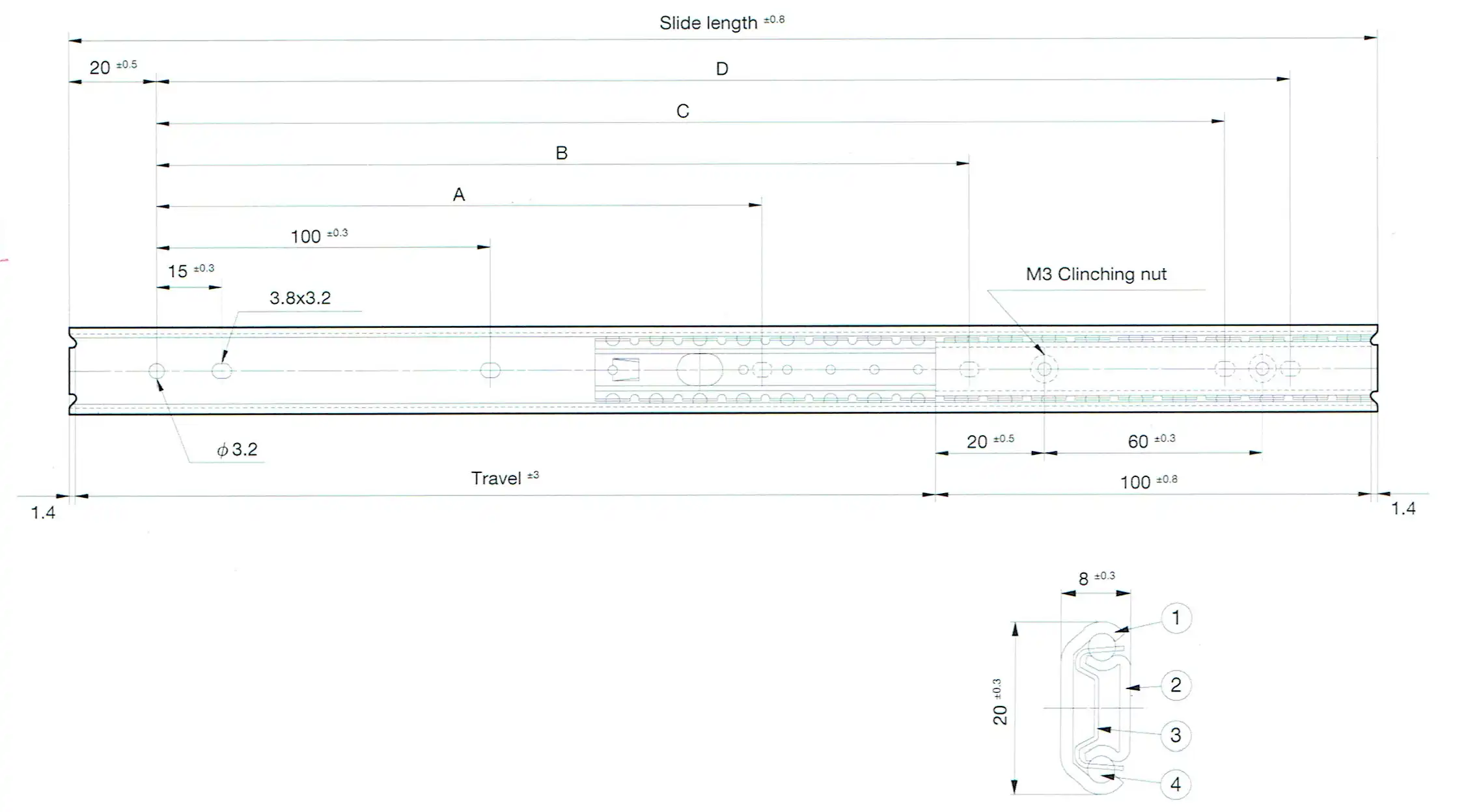

Specification
Custom Features
Part Number
Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
A
B
C
D
200
200
97
-
-
145
160
-
0.10
72
250
250
147
-
-
195
210
-
0.12
72
300
300
197
-
160
245
260
-
0.13
72
350
350
247
-
210
295
310
-
0.15
72
400
400
297
-
260
345
360
-
0.17
72
450
450
347
205
310
395
410
-
0.19
72
500
500
397
230
360
445
460
-
0.20
72
550
550
447
255
410
495
510
-
0.22
72
Number
Part Name
Material
Remark
1
Outer member
SPCC
t: 1.4
2
Inner member
SPCC
t: 1.2
3
Ball retainer
SECC
t: 0.5
4
Ball
SWCH
1/8"
