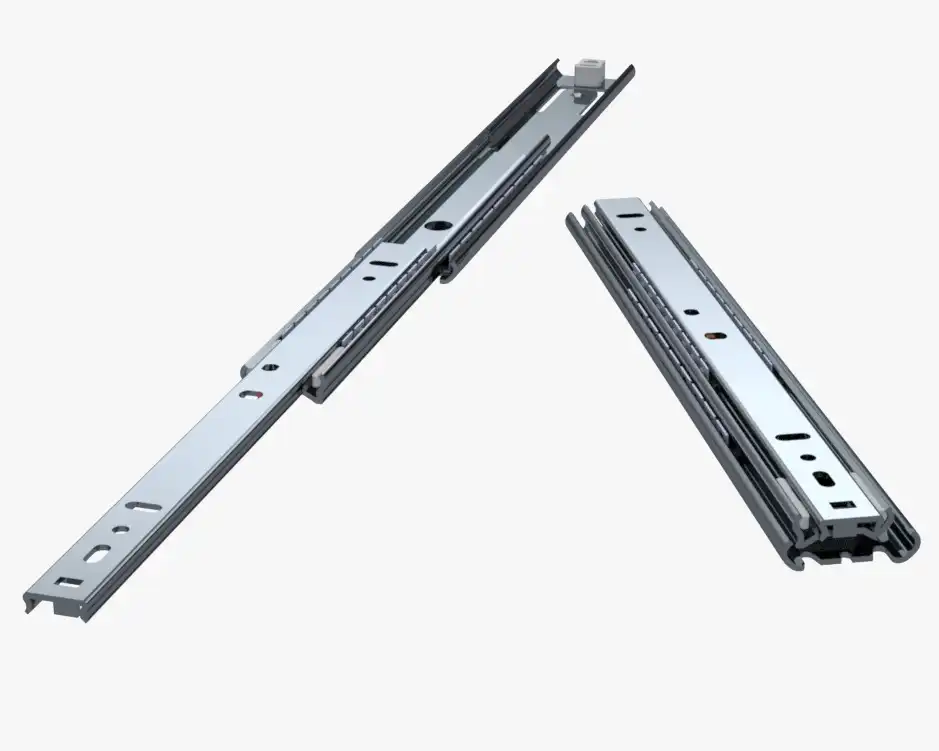

SBI35 (SPCC)

<Feature>

Products are common to the left and right

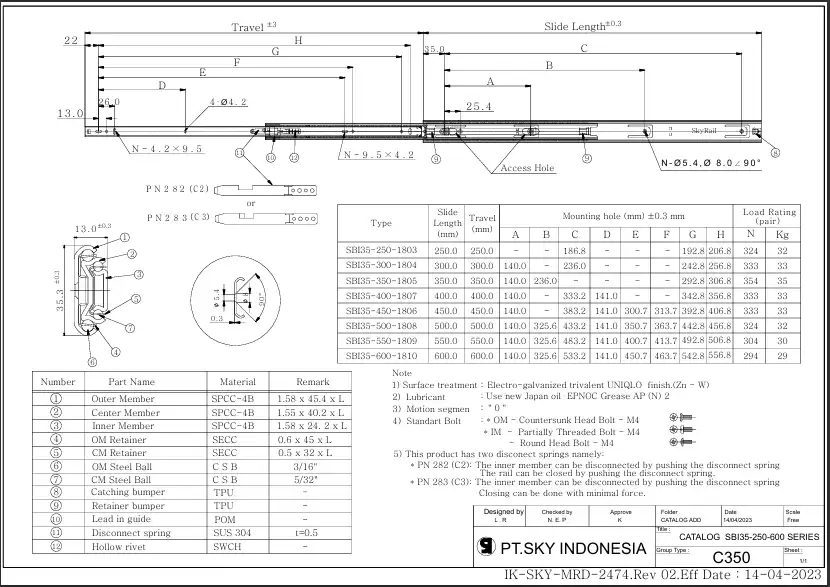

This product has two disconnect springs, namely:
1. PN 282 (C2)
  The inner member can be disconnected by pushing the disconnect spring. The rail can be closed by pushing the disconnect spring.
2. PN 283 (C3)
  The inner member can be disconnected by pushing the disconnect spring. Closing can be done with minimal force.

<Recommended Screw>

- OM - Countersunk head bolt - M4
- IM - Partially Threaded bolt - M4 - Round head bolt - M

<Grease>

Use new Japan Oil EPNOC Grease AP(N) 2

<Surface Treatment>

Electrogalvanized trivalent UNIQLO finish (Zn - W)

For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
