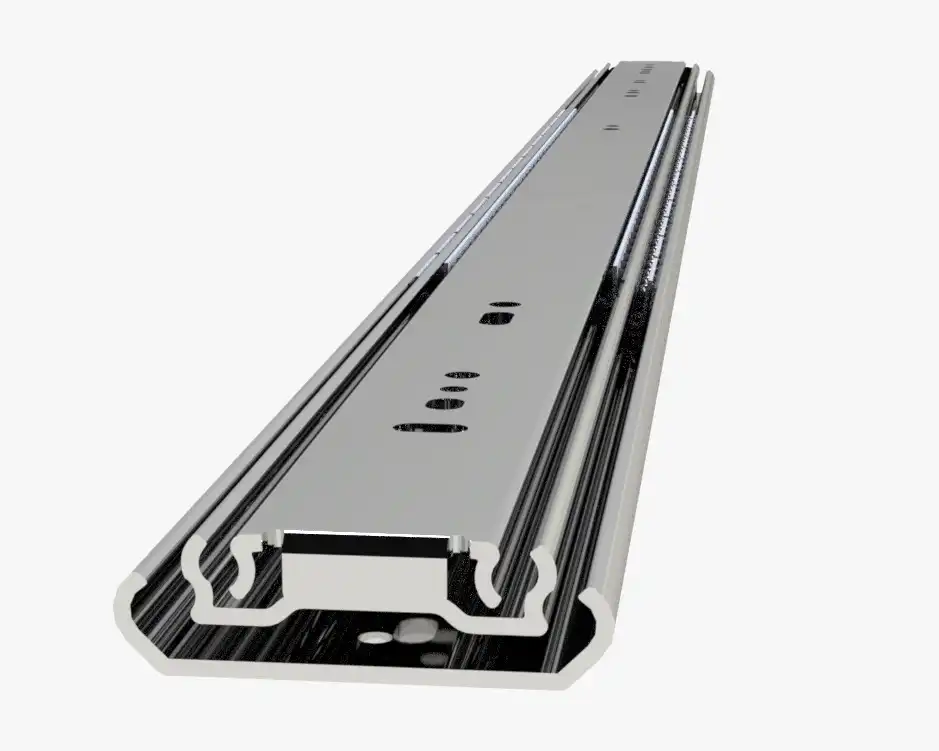

SBI69 (SPCC)

<Feature>

This product has two disconnect springs, namely:
1. PN 1013 (C2)
  The inner member can be disconnected by pushing the disconnect spring. The rail can be closed by pushing the disconnect spring.
2. PN 1014 (C3)
  The inner member can be disconnected by pushing the disconnect spring. Closing can be done with minimal force.

<Recommended Screw>

Partially Threaded bolt - M5 & M6
Round head bolt - M5 & M6

<Grease>

Use new Japan Oil EPNOC Grease AP(N) 2

<Surface Treatment>

Electrogalvanized trivalent UNIQLO finish (Zn - W)
* Also available in lock type, please inquire for details.

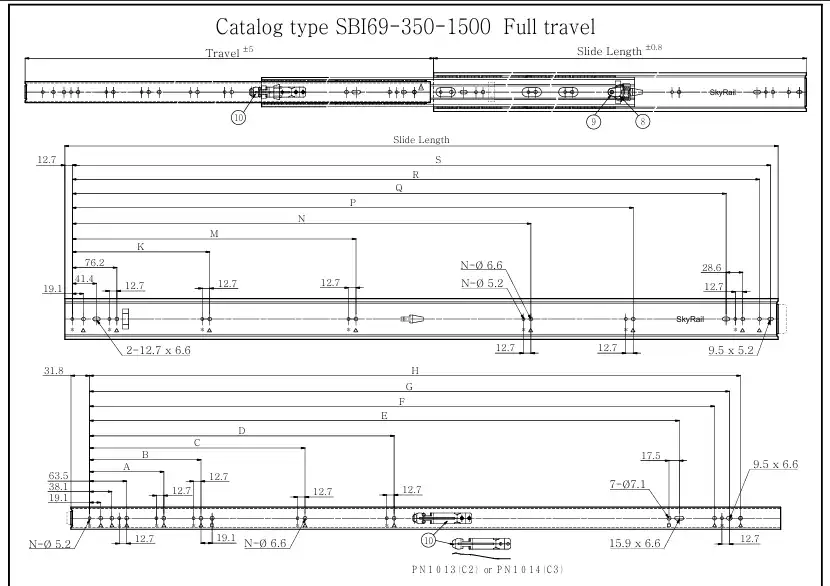

Part Number	Slide Length (mm)	Outer Length (mm)	Inner Length (mm)	Braket Length (mm)	Center Travel (mm)	Travel (mm)	Mounting Hole (mm) ± 0.8	Load Rating (pair)
350 - 3801	350	-	-	-	-	350	-	-	-	-	-	-	254.5	273.6	-	-	-	-	248.4	305.6	324.6	1470	150
400 - 3802	400	-	-	-	-	400	-	-	-	-	-	-	274.5	293.6	-	-	-	-	298.4	355.6	374.6	1470	150
450 - 3803	450	-	-	-	-	450	127	-	-	-	-	299.1	324.5	343.6	-	-	-	-	348.4	405.6	424.6	1470	150
500 - 3804	500	-	-	-	-	500	127	-	-	-	-	349.1	374.5	393.6	-	-	-	-	398.4	455.6	474.6	1570	160
550 - 3805	550	-	-	-	-	550	127	190.5	-	-	-	399.1	424.5	443.6	-	-	-	-	448.4	505.6	524.6	1570	160
600 - 3806	600	-	-	-	-	600	127	190.5	-	-	388.9	449.1	474.5	493.6	-	-	-	-	498.4	555.6	574.6	1570	160
650 - 3807	650	-	-	-	-	650	127	190.5	-	-	438.9	499.1	524.5	543.6	-	-	-	-	548.4	605.6	624.6	1520	155
700 - 3808	700	-	-	-	-	700	127	190.5	-	-	488.9	549.1	574.5	593.6	-	-	-	-	598.4	655.6	674.6	1520	155
750 - 3809	750	-	-	-	-	750	127	190.5	-	-	538.9	599.1	624.5	643.6	234.9	-	-	489.7	648.4	705.6	724.6	1520	155
800 - 3810	800	-	-	-	-	800	127	190.5	-	-	588.9	649.1	674.5	693.6	234.9	-	-	539.7	698.4	755.6	774.6	1520	155
850 - 3811	850	-	-	-	-	850	127	190.5	-	520.7	638.9	699.1	724.5	743.6	234.9	-	-	589.7	748.4	805.6	824.6	1520	155
900 - 3812	900	-	-	-	-	900	127	190.5	-	-	688.9	749.1	774.5	793.6	234.9	-	-	639.7	798.4	855.6	874.6	1520	155
950 - 3813	950	-	-	-	-	950	127	190.5	368.3	-	738.9	799.1	824.5	843.6	234.9	-	-	689.7	848.4	905.6	924.6	1470	150
1000 - 3814	1000	-	-	-	-	1000	127	190.5	368.3	-	788.9	849.1	874.5	893.6	234.9	-	-	739.7	898.4	955.6	974.6	1470	150
1050 - 3815	1050	-	-	-	-	1050	127	190.5	368.3	-	838.9	899.1	924.5	943.6	234.9	-	-	789.7	948.4	1005.6	1024.6	1470	150
1100 - 3816	1100	-	-	-	-	1100	127	190.5	368.3	-	888.9	949.1	974.5	993.6	234.9	-	-	839.7	998.4	1055.6	1074.6	1470	150
1150 - 3817	1150	-	-	-	-	1150	127	190.5	368.3	-	938.9	999.1	1024.5	1043.6	234.9	-	-	889.7	1048.4	1105.6	1124.6	1470	150
1200 - 3818	1200	-	-	-	-	1200	127	190.5	368.3	520.7	988.9	1049.1	1074.5	1093.6	234.9	-	-	939.7	1098.4	1155.6	1174.6	1470	150
1250 - 3819	1250	-	-	-	-	1250	127	190.5	368.3	520.7	1038.9	1099.1	1124.5	1143.6	234.9	-	-	989.7	1148.4	1205.6	1224.6	1176	120
1300 - 3820	1300	-	-	-	-	1300	127	190.5	368.3	520.7	1088.9	1149.1	1174.5	1193.6	234.9	-	-	1039.7	1198.4	1255.6	1274.6	1176	120
1350 - 3821	1350	-	-	-	-	1350	127	190.5	368.3	520.7	1138.9	1199.1	1224.5	1243.6	234.9	596.6	-	1089.7	1248.4	1305.6	1324.6	1176	120
1400 - 3822	1400	-	-	-	-	1400	127	190.5	368.3	520.7	1188.9	1249.1	1274.5	1293.6	234.9	596.6	-	1139.7	1298.4	1355.6	1374.6	1176	120
1450 - 3823	1450	-	-	-	-	1450	127	190.5	368.3	520.7	1238.9	1299.1	1324.5	1343.6	234.9	596.6	958.9	1189.7	1348.4	1405.6	1424.6	1176	120
1500 - 3824	1500	-	-	-	-	1500	127	190.5	368.3	520.7	1288.9	1349.1	1374.5	1393.6	234.9	596.6	958.9	1239.7	1398.4	1455.6	1474.6	1176	120

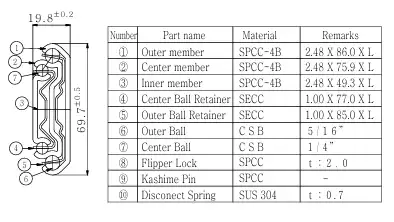

Number	Part Name	Material	Remark
1	Outer member	SPCC-4B	2.48 x 86.0 x L
2	Center member	SPCC-4B	2.48 x 75.9 x L
3	Inner member	SPCC-4B	2.48 x 49.3 x L
4	Center ball retainer	SECC	1.00 x 77.0 x L
5	Outer ball retainer	SECC	1.00 x 85.0 x L
6	Outer ball	CSB	5/16"
7	Center ball	CSB	1/4"
8	Flipper lock	SPCC	t: 2.0
9	Kashime pin	SPCC	-
10	Disconnect spring	SUS304	t: 0.7

For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
