The 2000 Series features 20-mm width compact slide rails. Smallest cross section among SPCC rails.
Travel is possible at both front and rear. (Two-way travel type)
Brake-stop type. With a sharp pull from the full-tavel position, the inner member can be disconnected. (Stopper is not provided).
(" Do not insert the disconnected inner member into another rail. It may lead to poor operation ")
<Recommended screws>
M3 truss head screw or binding head screw
<Grease>
JX Nippon Oil and Energy EPNOC Grease AP(N) 2
<Surface Treatment>
Part numbers (1) (2): Electrogalvanizing (trivalent bright chromate)

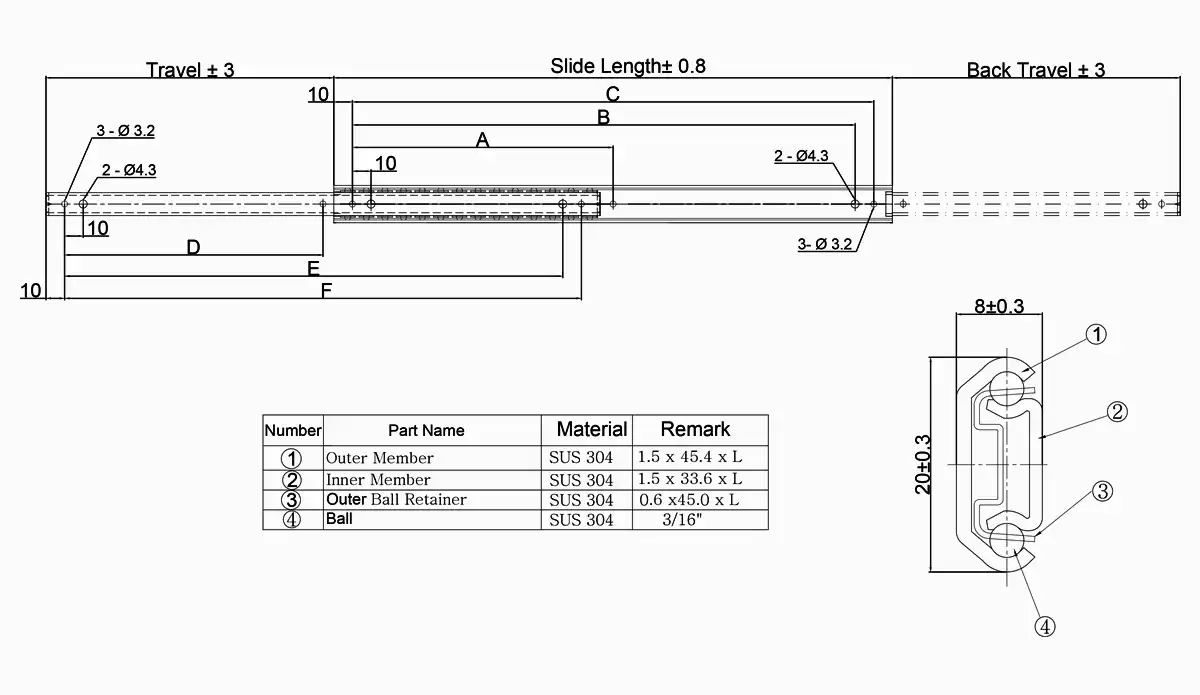

Specification
Custom Features
Part Number
Slide Length (mm)
Travel (mm)
Mounting Hole (mm) ± 0.3 mm
Load Capacity (N/pair)
Product Weight (kg/piece)
Quantity in Package (pieces)
A
B
C
70
70
15
-
30
50
196
0.04
216
100
100
25
-
60
80
196
0.06
216
150
150
45
-
110
130
196
0.08
144
200
200
75
90
160
180
196
0.11
72
Number
Part Name
Material
Remark
1
Outer member
SPCC
t: 1.4
2
Inner member
SPCC
t: 1.2
3
Ball retainer
SECC
t: 0.5
4
Ball
SWCH
1/8"
For requests concerning special sizes or specification change etc., contact our sales staff.
For special sizes, contact our sales staff.
Changes may be made without notice for improved quality, environment, and safety, without affecting function or mounting.
