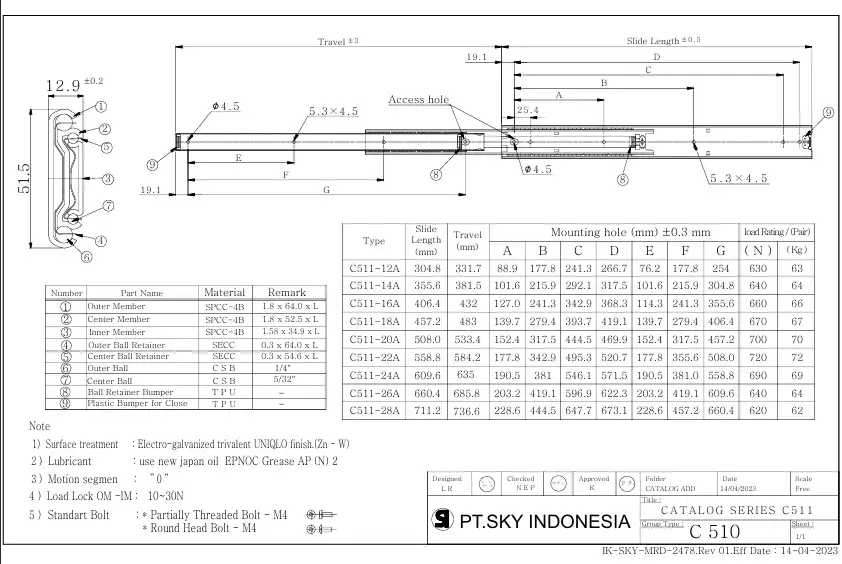

| Part Number | Slide Length (mm) | Outer Length (mm) | Inner Length (mm) | Braket Length (mm) | Center Travel (mm) | Travel (mm) | Mounting Hole (mm) ± 0.8 | Load Rating (pair) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | N | Kg | |||||||
| 12A | 304.8 | - | - | - | - | 331.7 | 88.9 | 177.8 | 241.3 | 266.7 | 76.2 | 177.8 | 254 | 630 | 63 |
| 14A | 355.6 | - | - | - | - | 381.5 | 101.6 | 215.9 | 292.1 | 317.5 | 101.6 | 215.9 | 304.8 | 640 | 64 |
| 16A | 406.4 | - | - | - | - | 432 | 127 | 241.3 | 432.9 | 368.3 | 114.3 | 241.3 | 355.6 | 660 | 66 |
| 18A | 457.2 | - | - | - | - | 483 | 139.7 | 279.4 | 393.7 | 419.1 | 139.7 | 279.4 | 406.4 | 670 | 67 |
| 20A | 508 | - | - | - | - | 533.4 | 132.4 | 317.5 | 444.5 | 469.9 | 152.4 | 317.5 | 457.2 | 700 | 70 |
| 22A | 558.8 | - | - | - | - | 584.2 | 177.8 | 342.9 | 495.3 | 520.7 | 177.8 | 355.6 | 508 | 720 | 72 |
| 24A | 609.6 | - | - | - | - | 635 | 190.5 | 381 | 546.1 | 571.5 | 190.5 | 381 | 558.8 | 690 | 69 |
| 26A | 660.4 | - | - | - | - | 685.8 | 203.2 | 419.1 | 596.9 | 622.3 | 203.2 | 419.1 | 609.6 | 640 | 64 |
| 28A | 711.2 | - | - | - | - | 736.6 | 228.6 | 444.5 | 647.7 | 673.1 | 228.6 | 457.2 | 660.4 | 620 | 62 |
| Number | Part Name | Material | Remark |
|---|---|---|---|
| 1 | Outer member | SPCC-4B | 1.8 x 64.0 x L |
| 2 | Center member | SPCC-4B | 1.8 x 52.5 x L |
| 3 | Inner member | SPCC-4B | 1.58 x 34.9 x L |
| 4 | Outer ball retainer | SECC | 0.3 x 64.0 x L |
| 5 | Center ball retainer | SECC | 0.3 x 54.6 x L |
| 6 | Outer ball | CSB | 1/4" |
| 7 | Center ball | CSB | 5/32" |
| 8 | Ball retainer bumper | TPU | - |
| 9 | Plastic bumper for close | TPU | - |
For requests concerning special sizes or specification change etc., contact our sales staff.
